MACO 3 elements 3,45 meter boom (M103C):

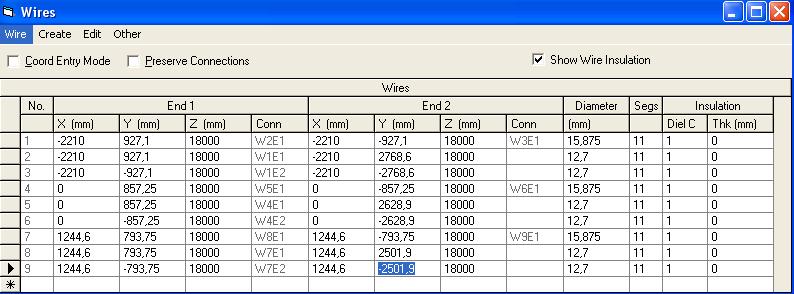

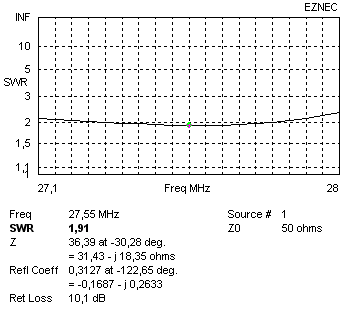

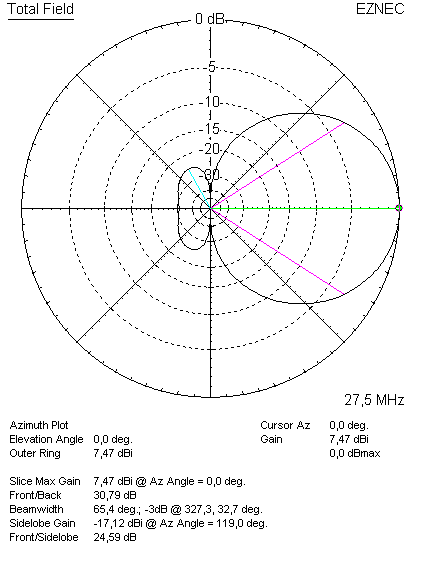

These pictures/EZNEC diagrams show the result of a MACO 3 element with 3,45m boom.








Source: maco assembly pdf file
