MACO 6 elements 9,306 meter boom:

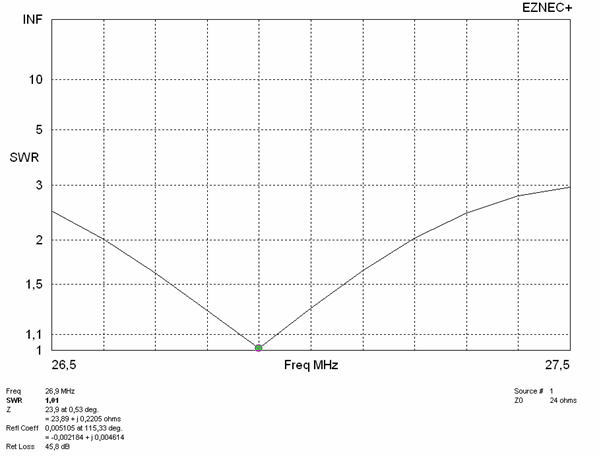

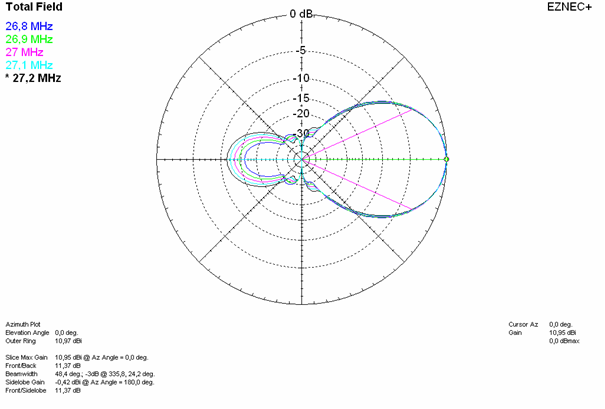

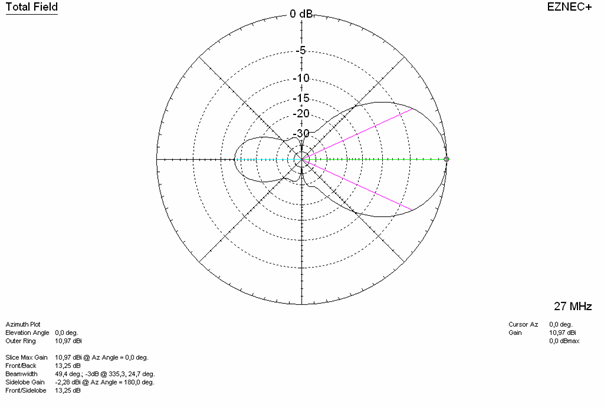

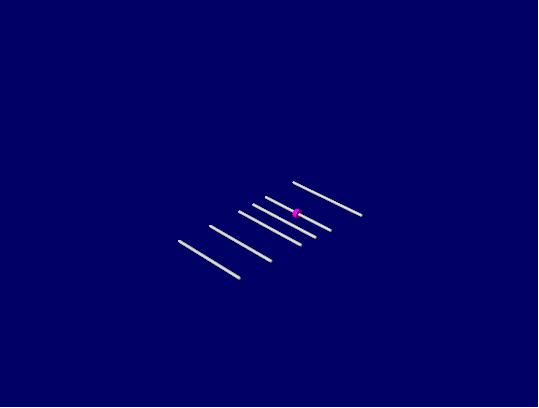

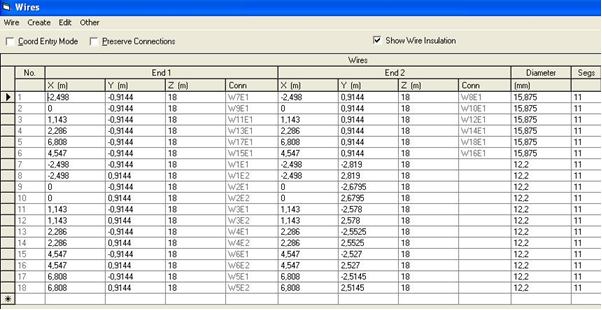

These pictures/EZNEC diagrams show the result of a MACO 6element with 9,306m boom.







Band width from 26,4 - 27,2: 0,6 MHz

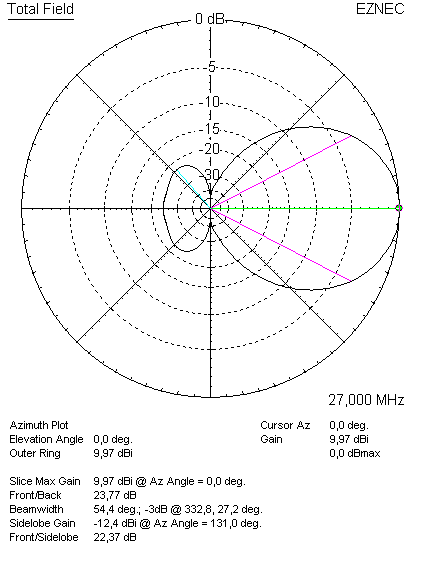

Hint: When you remove the 4th director, the Front/Back improves a lot:

Source: maco assembly pdf file
