PKW 7 element Yagi, 13,02m boom:

These pictures/EZNEC diagrams show the result of a PKW 7 element yagi, 13,03m boom:

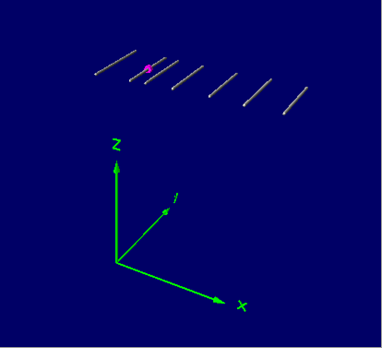

Drawing of the 7 element PKW yagi

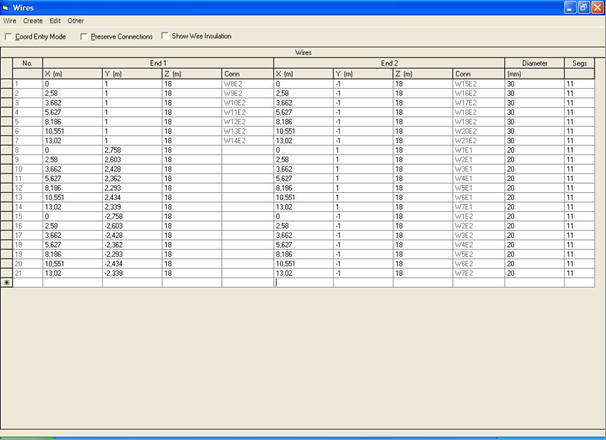

Wires of the 7 element PKW yagi

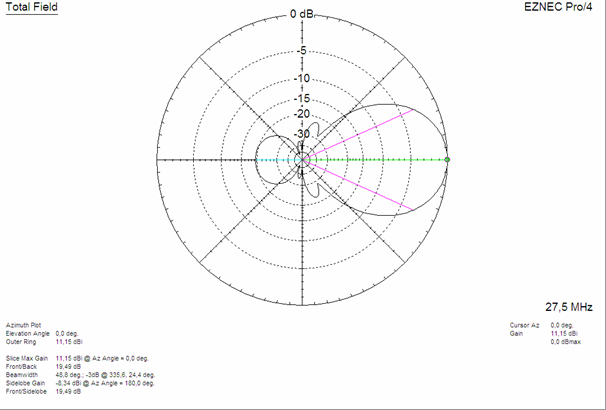

Azimuth plot of the 7 element PKW yagi

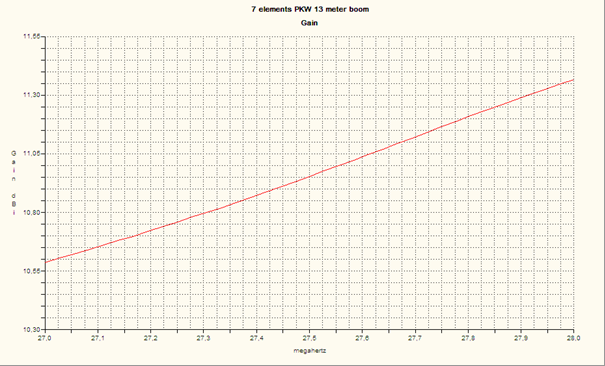

Gain diagram of the 7 element PKW yagi

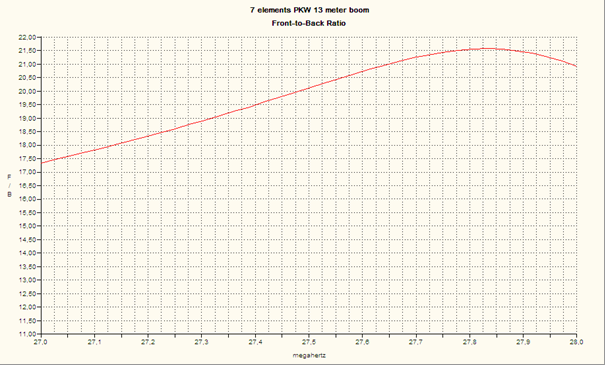

Front to Back ratio of the 7 element PKW yagi

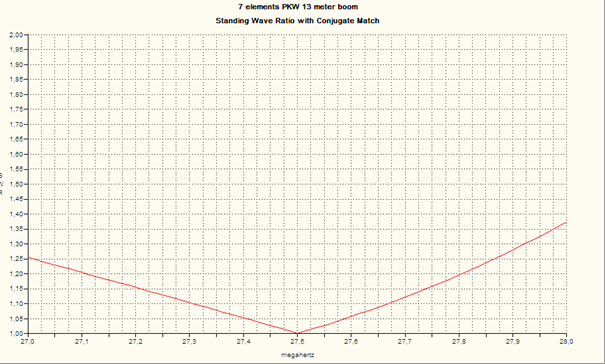

SWR of the 7 element PKW yagi

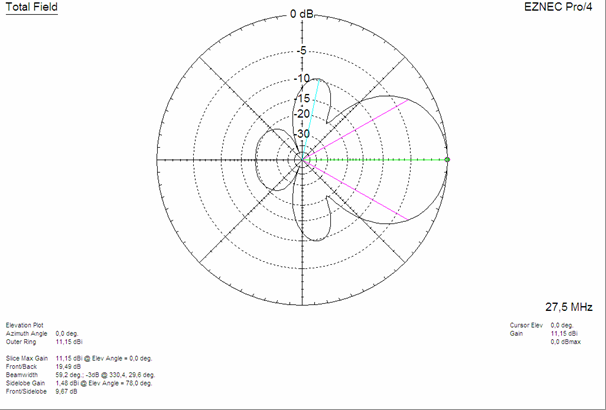

Elevation plot of the 7 element PKW yagi

Source: PKW assembly pdf file
