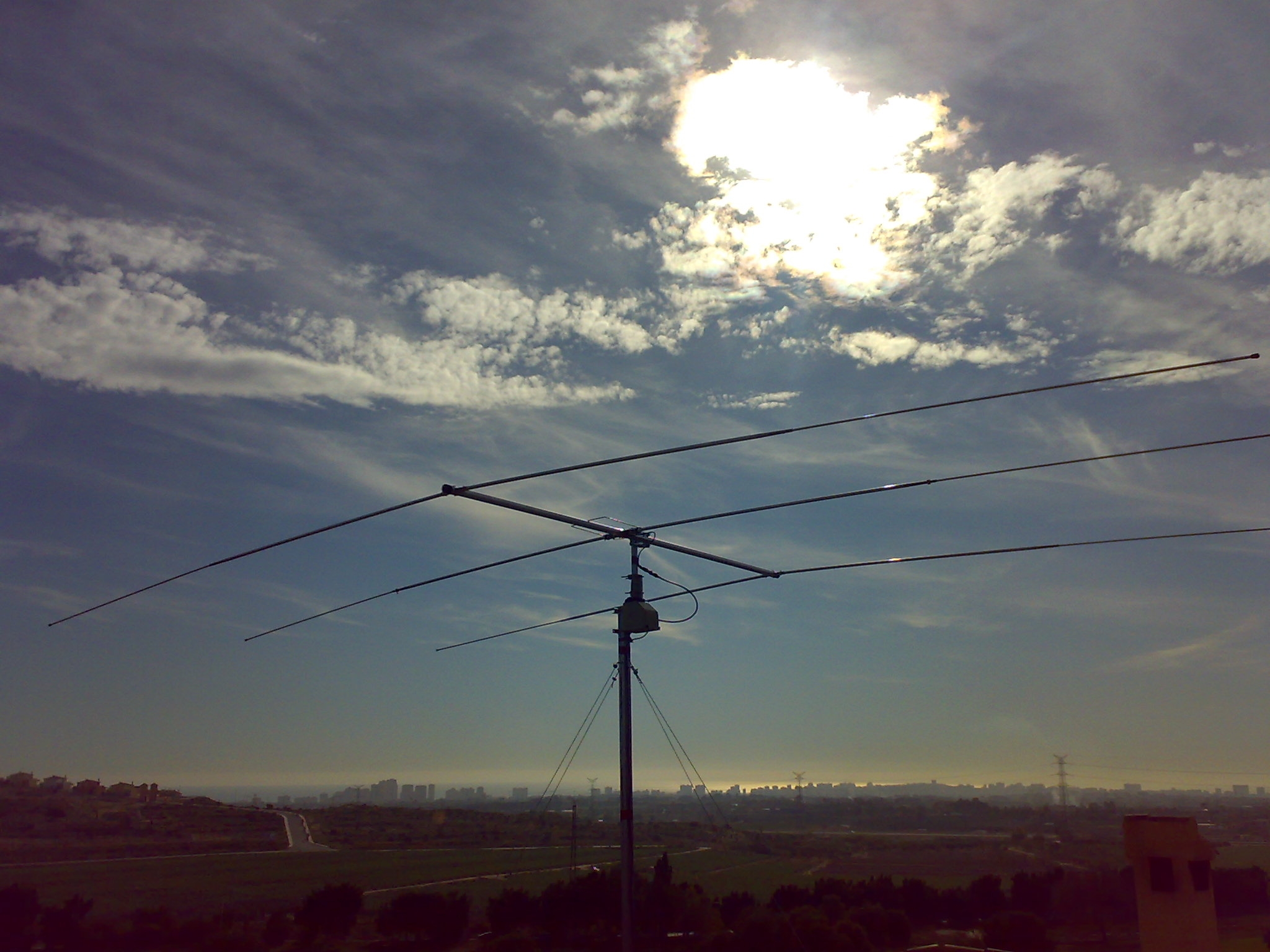

ECO 3 elements 2,4 meter boom:

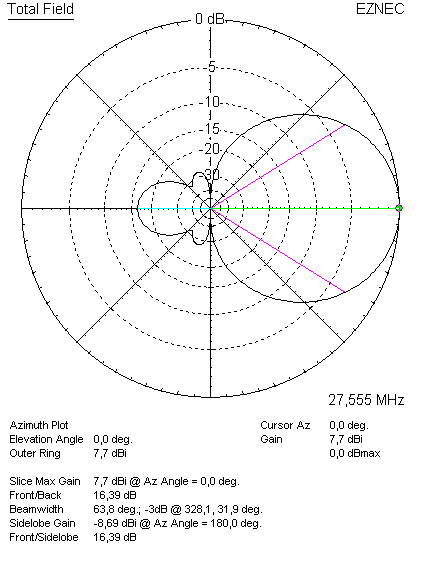

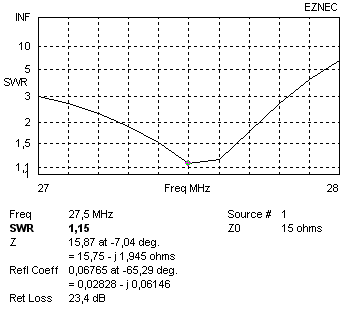

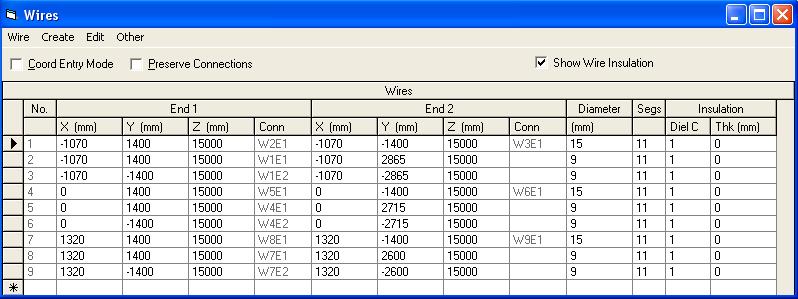

These pictures/EZNEC diagrams show the result of a ECO 3 element with 2,4m boom.

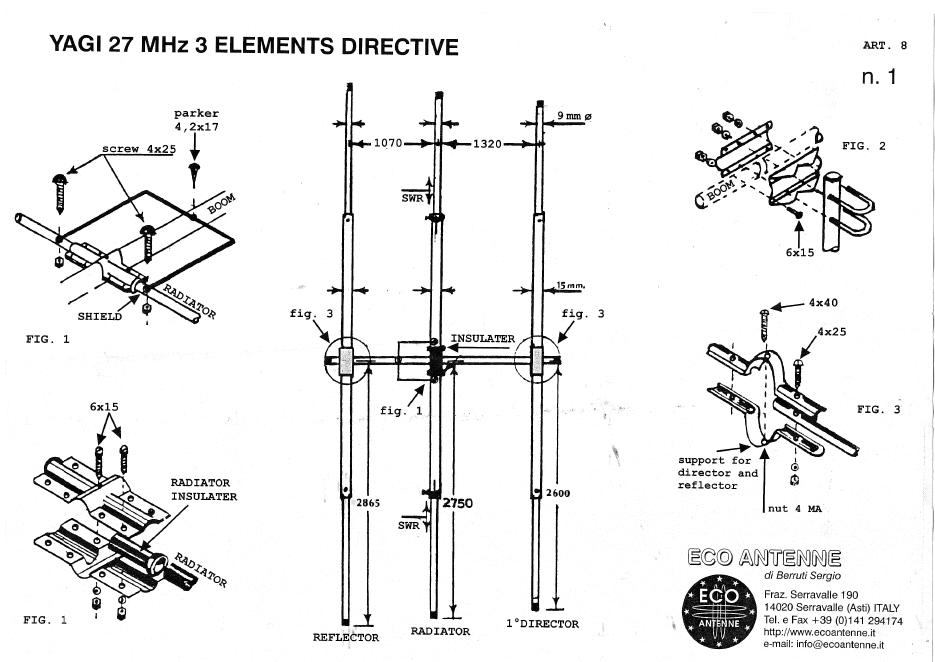

Source: ECO assembly pdf file
