Moxon 5 element:

Compared to the Moxon 4 element this antenna has one element extra between the two moxon's.
It has a good F/B, bandwidth and gain.

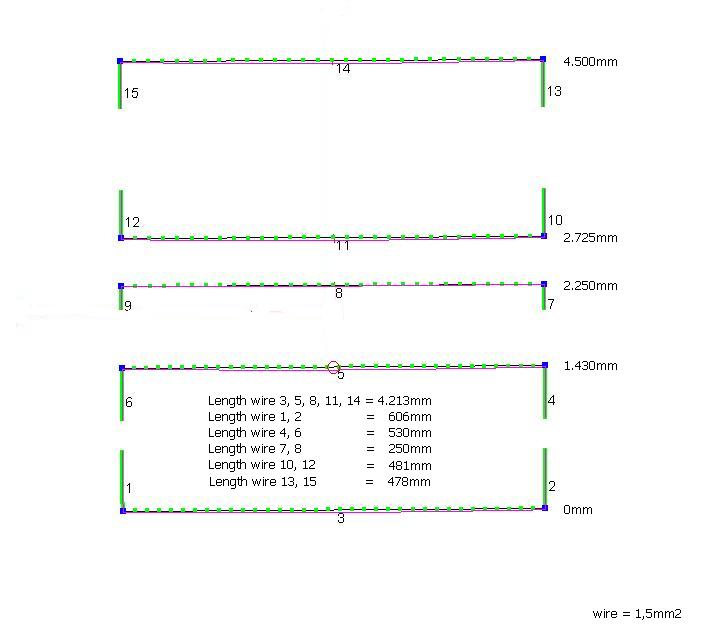

Dimensions 4,5 * 4,05 meter, weight about 3,0kg, gain 9,3 dBi.



Elevation Plot on 20m

We can offer you this antenna in a compleet antenna kit
For more information send us an e-mail or look on www.DX4.us
