element Cubical Quad
The two element quad has a very good reputation.
If you are limited in space a 2 elements quad could be what you were
looking for.
A quad has a smaller turning radius that a yagi it has a lower noise
level and a slight higher gain.
Probably the best solution for its size.
Another advantage is that you still don't need a big rotator a small
TV rotor beneath this antenna is a long lasting solution.

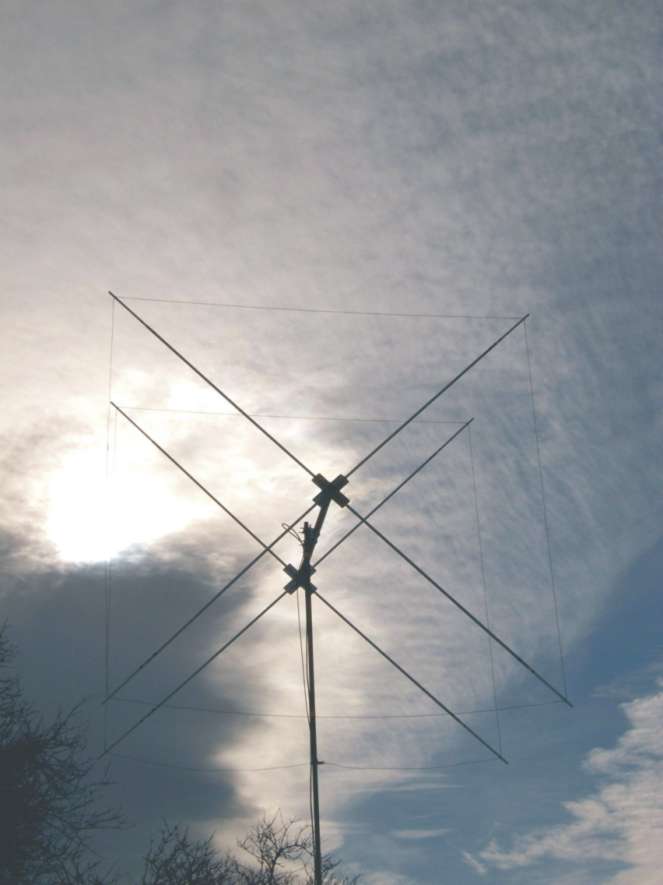

The picture is from 19LD266 Nico besides his 6 or his 5 elements yagi
he also owns this 2 elements Quad.
Boom
length 1,5m HPSD 2Q |
|
| Design freq: | 27,555
MHz |
| Gain: | 5,15
dBD |
| F/B: | 24
dB |
| Beam width: | 74
degrees |
| Band width | 0,6
MHz |
| Wire | 12
AWG |

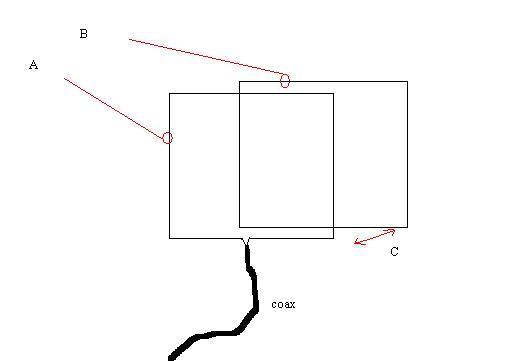

| A= | 11.040mm |
| B= | 11.600mm |
| C= | 1500mm |
TYPE HPSD 2Q :

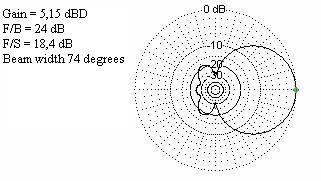

2 el. QUAD PATTERN
There are many commercial 2 elements available please see chapter commercial
Quad for further information.
But don't forget this is an antenna you could build perhaps with Bamboo
or fiberglass poles on a saturday afternoon.
