5
ELEMENTS YAGI
The serious DXing machine !
These antenna
types are worth the effort, the expensive rotator will pay for every
penny you have spent.

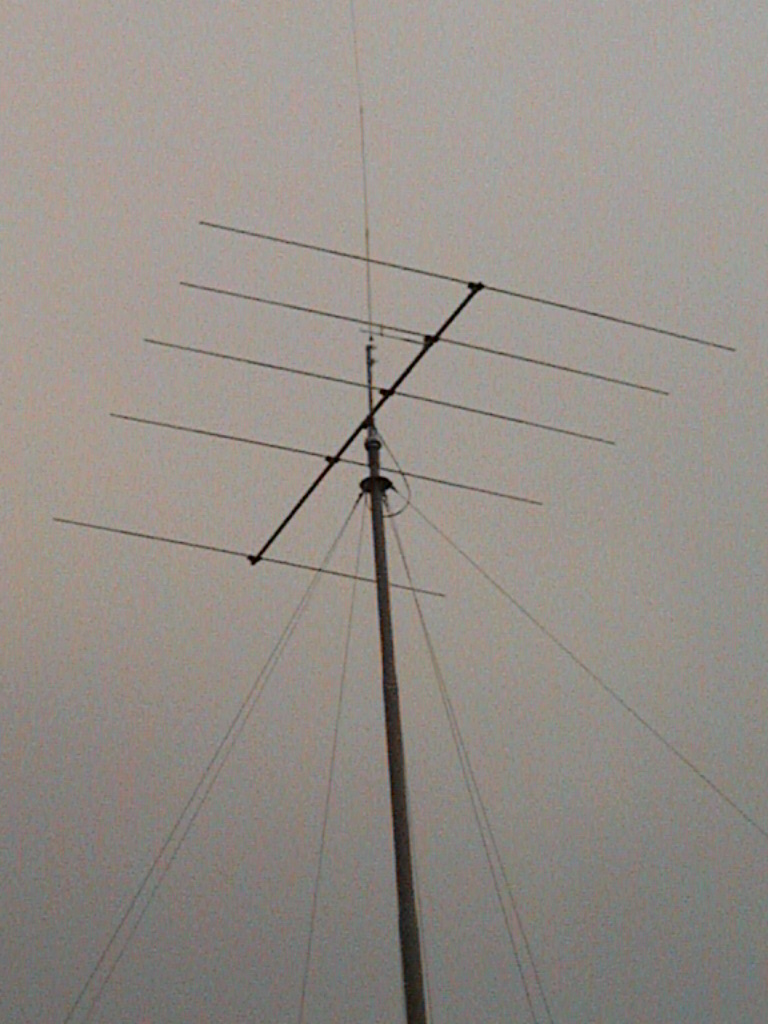

I myself worked 100 DXCC in half a year during the sunspot minimum (2005
sep-2006 feb) with an antenna like this.

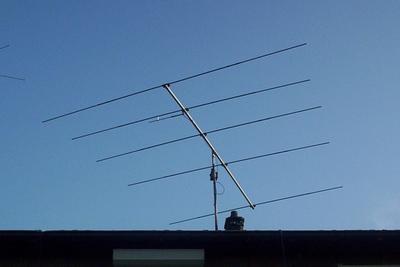

Rob who has a 5el ITB version has now 298 DXCC great job!
They come
in a great variation on the market short versions...long versions etc..
As said earlier when you want a significant change with your antenna
system this will come down to almost doubling the boomlenght.
With a boomlenght around 7 to 8 meters a 5 elements yagi is about the
biggest antenna available without having to worry
to much about the mechanical problems.

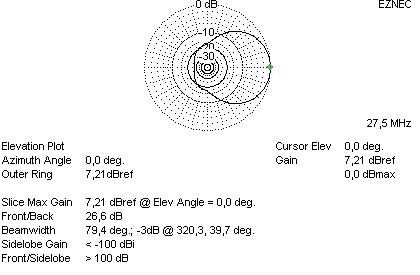

Boom
length 5,78m HPSD 5 short |

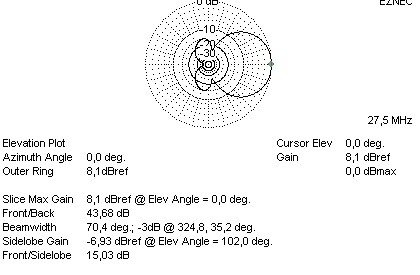

Boom length 7,32m HPSD 5 normal | Boom

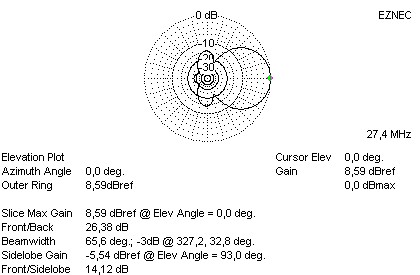

length 9,0m HPSD 5 long |
|
| Design freq: | 27,555
MHz |
27,555
MHz |
27,555
MHz |
| Gain: | 7,16
dBD |
8,13
dBD |
8,65
dBD |
| F/B: | 32,11
dB |
43
dB |
27
dB |
| Beam width: | 81,6
degrees |
70
degrees |
65,6
degrees |
| Band width | 0,5
MHz |
1,5
MHz |
>1,0
MHz |
| Element thickness | 22mm |
22mm |
22mm |
| A= | 4720mm |
4720mm |
4660mm |
| B= | 4740mm |
4940mm |
4950mm |
| C= | 5120mm |
5020mm |
5054mm |
| D= | 5260mm |
5280mm |
5320mm |
| E= | 5480mm |
5480mm |
5500mm |
| F= | 1830mm |
2740mm |
2950mm |
| G= | 1250mm |
2290mm |
2900mm |
| H= | 1100mm |
900mm |
1400mm |
| I= | -1600mm |
-1380mm |
-1750mm |
Short ------------------------- Normal
Long
