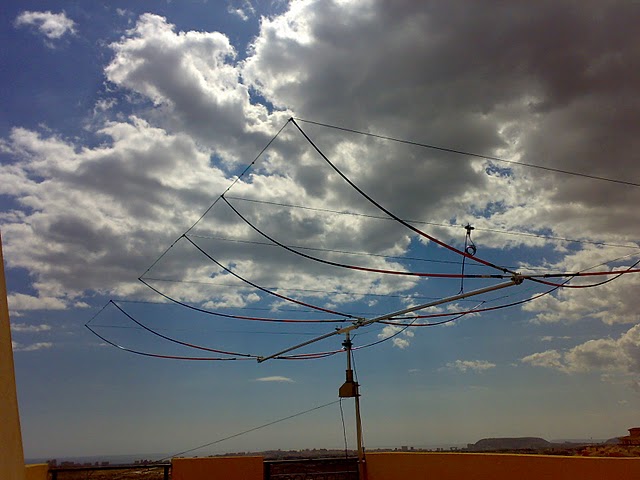

Moxon 6 element:

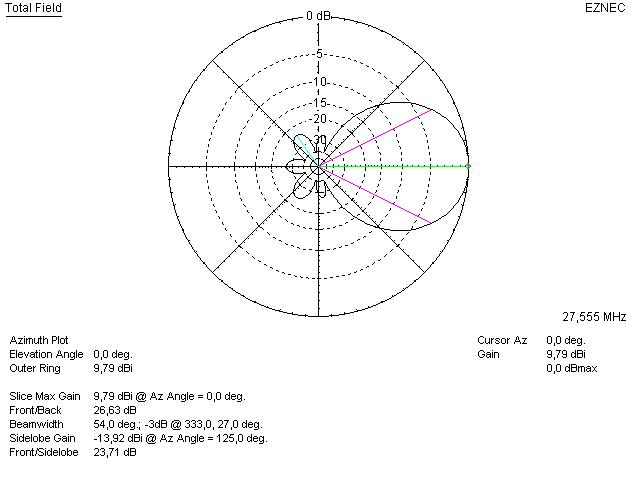

This antenna has a good F/B, bandwidth and gain.

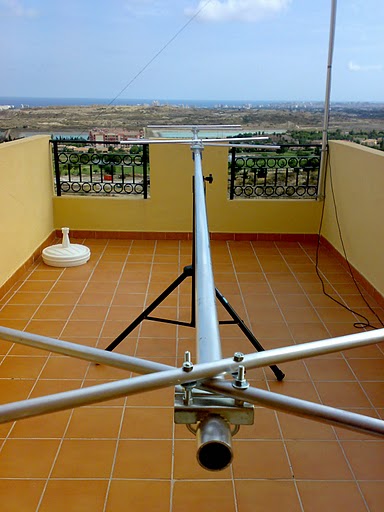

Dimensions 6,3 * 4,0 meter, the aluminum boom is only 4,8 meter, gain 9,8dBi.

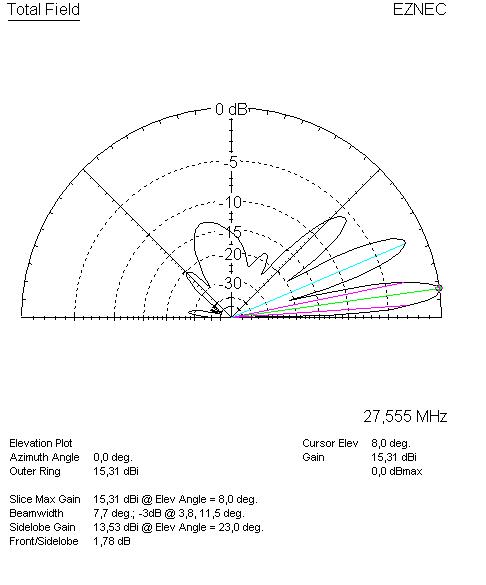

Elevation Plot on 20m

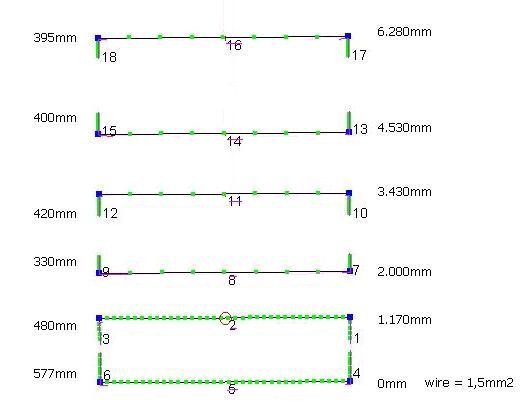

Measurements to build a Moxon 6 element:

We can offer you this antenna in a complete antenna kit
For more information send us an e-mail or look on www.DX4.us
