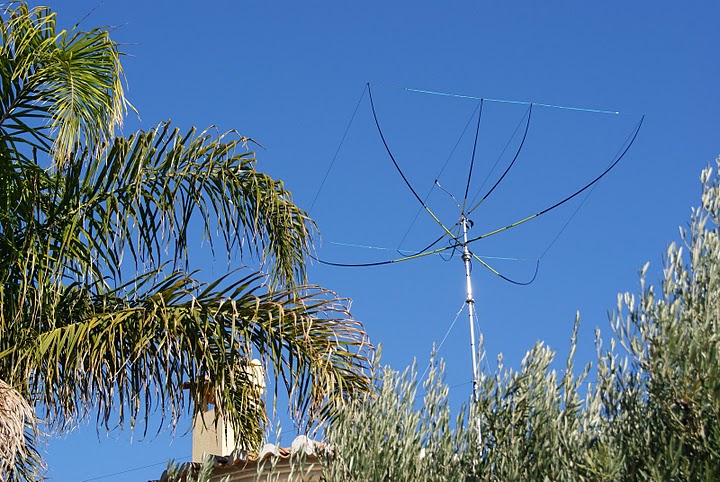

Moxon 4 element (standard):

This antenna has a very good F/B, bandwidth and gain.

Dimensions 4,0 * 4,0 meter, weight about 3,0kg, gain 8,5 dBi.

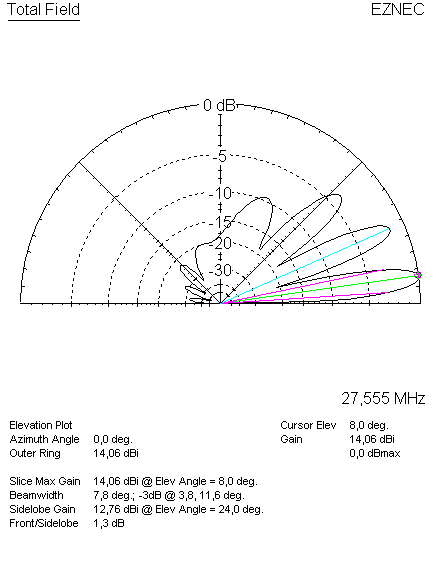

Elevation Plot on 20m

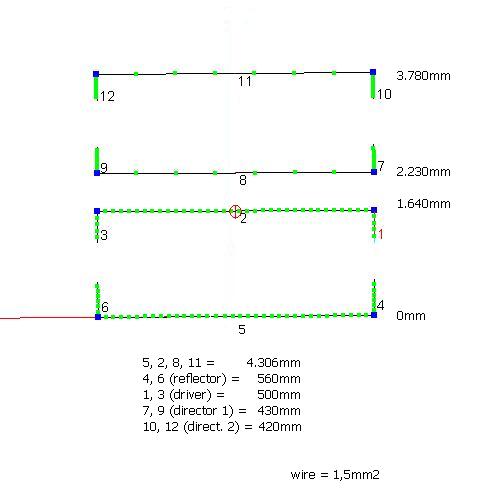

Measurements to build a Moxon 4 element:

We can offer you this antenna in a complete antenna kit
For more information send us an e-mail or look on www.DX4.us
